QUALITY TESTING FOR A STRONGER TOMORROW

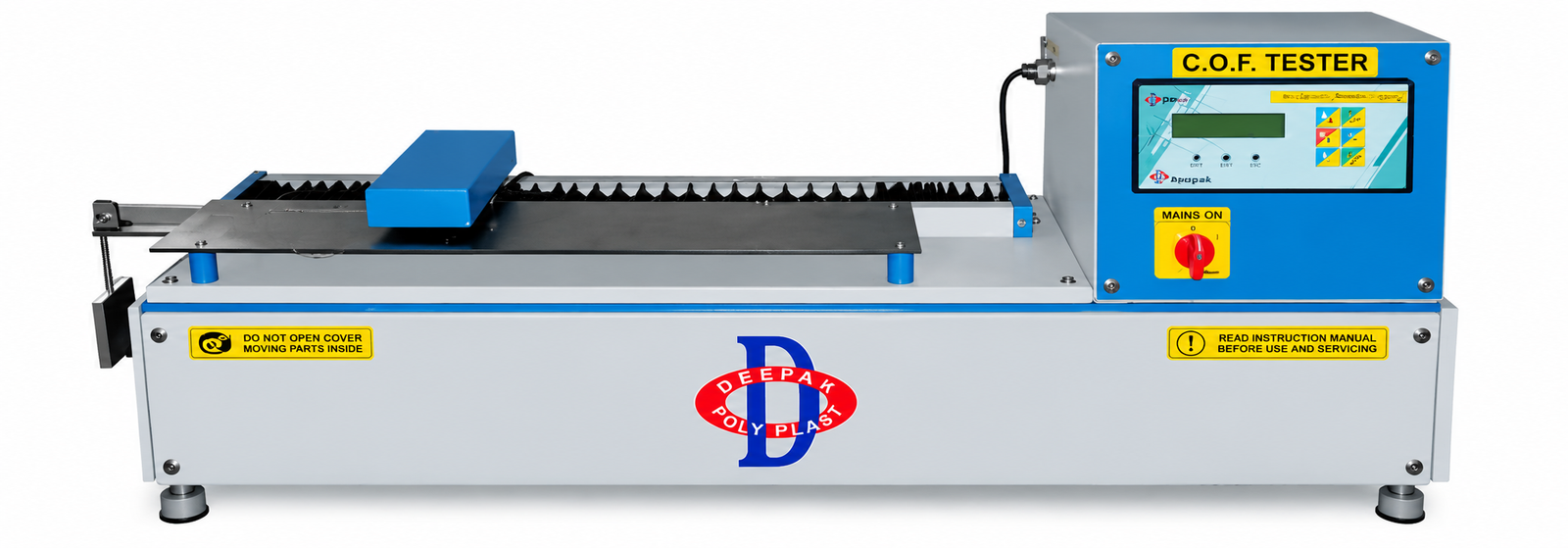

CO-EFFICIENT OF FRICTION TESTER WITH DIGITAL LOAD CELL METER
The equipment provides measurement of static and kinetic co-efficient of friction.
●
ACCURATE
MEASUREMENT
●
ADVANCED DIGITAL
TECHNOLOGY
●
RELIABLE & DURABLE
DESIGN
Features
Precision • Control • Repeatability
✓
Microprocessor based programmable LCD digital display unit with memory back-up.
✓
With computer interfacing software facility (Rs-232 to Rs-485 converter system).
✓
With master software CD & interfacing cable with USB connectivity.
✓
Variable speed control system with AC drive digital speed indicator.
✓
Speed selection: 10 mm. min TO 300 mm/min.
✓
Sled movement of 300mm/min.
✓
With overload protection system for loadcell.
✓
With autostop facility after 300mm travel.
✓
Electronic flat bar type load cell, available with 100 or 150 gm capacity.
✓
Pneumatic make compact AC geared motor & compact gear box system.
✓
Slad with sled and rubber combination.
✓
Movement of Sled is based on friction less linear guide system to avoid play in running mode.
✓
S.S. High Polish Moving Platform with guide and scale with auto reverse on/off selection facility.
✓
Attachment available for peel of strength of plastic adhesive film, at extra cost.
✓
Power Requirement: 220/230 V AC, 50 Hz Single Phase.
ENSURING SUPERIOR QUALITY
Trusted testing solutions for polymer and packaging industries.
